A solar battery stores excess electricity generated by solar panels for later use. It helps to provide backup power, reduce electricity bills and increase energy independence. It makes solar energy systems more reliable and sustainable. The battery stores direct current (DC) electricity as chemical energy and converts it into alternating current (AC) electricity by an inverter to power appliances when solar production is low or unavailable.
Solar batteries are connected to solar panels through DC coupling, which is more efficient as it converts electricity once, or AC coupling, which is easier for retrofits but less efficient due to multiple conversions. A solar battery maximizes solar use, provides backup during outages, lowers peak electricity costs and reduces the carbon footprint.
There are many types of solar batteries, such as lithium-ion (long lifespan, high efficiency), lead-acid (cost-effective but shorter life), flow batteries (scalable, durable), saltwater and nickel-cadmium (durable but less eco-friendly). You should consider the capacity, power rating, type, efficiency, lifespan, cost, safety features and compatibility to choose a solar battery. In critical backup mode, the battery powers essential loads during outages. In self-consumption mode, it stores surplus solar energy for on-site use. Modern systems handle both modes simultaneously.
A solar battery is a device or system that stores electricity generated by solar panels for later use, especially when sunlight is unavailable, such as at night or during cloudy days. Solar batteries are also referred to as solar panel batteries or solar energy storage systems. Their primary function is to capture excess energy produced by solar panels and release it when needed, thereby maximizing the use of solar energy and reducing the reliance on the grid.
Their main benefits include lowering electricity bills, providing backup power during outages, increasing energy independence, maximizing the use of solar energy and supporting a cleaner environment. Solar batteries overall make solar power systems more efficient, reliable and sustainable.
A solar battery storage system works by storing electricity generated by solar panels during the day for use when sunlight is unavailable. The process begins when sunlight hits the solar panels, which convert sunlight into DC electricity. The panels generate DC electricity, which is then stored in a rechargeable energy storage system as chemical energy. A battery management system provides safe and efficient storage. The battery discharges its stored energy when needed, which is converted into AC electricity by an inverter to power the home. The home automatically switches to grid power if the battery is depleted. This system increases energy independence and provides reliable backup power.
7 steps of how a solar battery works are listed below.
This process allows a solar battery storage system to store electricity during the day and power a home whenever solar generation is unavailable, increasing energy independence and reliability.

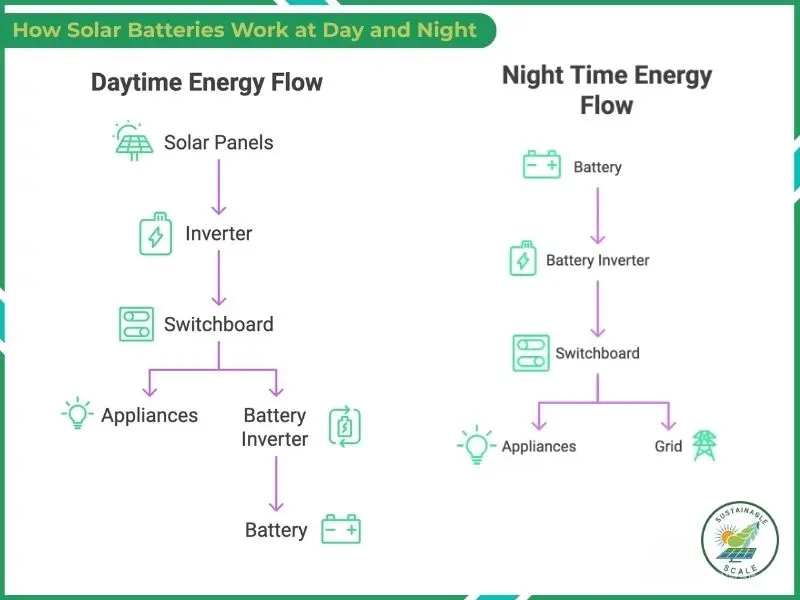

A side-by-side comparison diagram below illustrates how energy flows from solar panels to appliances and batteries during the day versus from the battery to appliances and the grid at night.
Solar panels are linked with a solar battery system to store excess solar energy for later use and this connection is made in two ways, AC coupling or DC coupling.
Solar panels are linked to a solar battery system through AC coupling or DC coupling, with DC-coupled battery storage systems offering higher efficiency and AC coupling providing greater flexibility for upgrades and grid charging options.

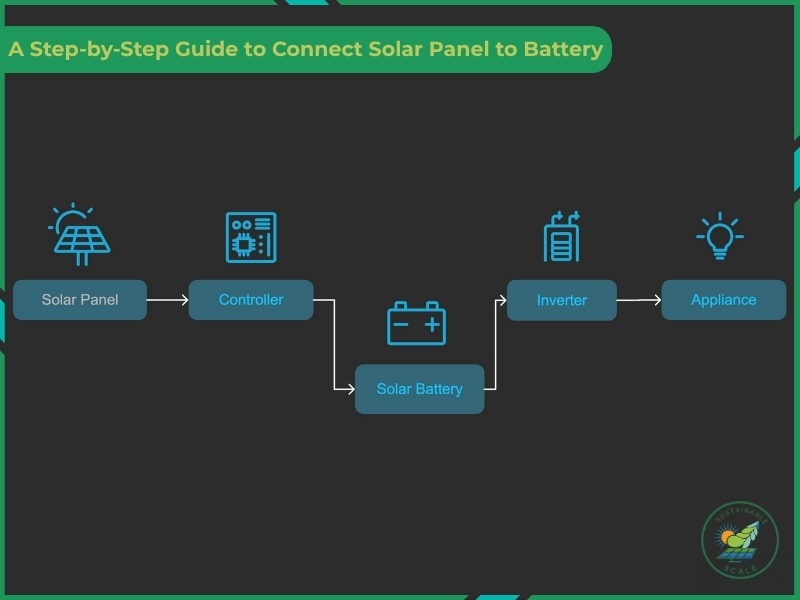

The flowchart below shows the step-by-step connection from a solar panel to a controller, battery, inverter, and finally to an appliance.
You should use a solar battery storage system because it lets you store excess energy generated by solar panels for later use, such as at night, during cloudy weather or during outages, and provide a reliable backup power and greater energy security. Solar panels alone supply electricity without a battery when the sun is shining. Any extra energy is sent back to the grid and you must buy power from the utility at night or during outages.
The benefits of using a solar energy battery storage system include the ability to save money on electricity bills, increased energy independence to reduce reliance on the grid, backup power during outages and a smaller carbon footprint. You can maximize your solar investment, avoid expensive peak rates and ensure your home stays powered with a battery even when the grid fails.
The different types of solar batteries include lithium-ion batteries, lead-acid batteries, nickel-cadmium batteries, flow batteries and saltwater batteries. These deep-cycle batteries differ in terms of lifespan, efficiency, cost and suitability for various domestic solar battery systems and allow users to choose the best option to store energy generated by solar panels for their specific energy storage needs.
The different types of solar batteries are given below.
Solar batteries, such as lightweight solar batteries, provide a backup power source, achieving electricity bill savings and promoting increased energy independence by storing excess solar energy for later use. They also contribute to a reduced carbon footprint. They come with disadvantages, including high upfront costs, limited energy storage capacity, safety concerns and maintenance requirements.
The advantages of a solar battery are listed below.
The disadvantages of a solar battery are listed below.
Things to consider when choosing a solar battery include battery type, capacity, power rating, round-trip efficiency, depth of discharge, warranty, maintenance requirements and overall cost. Taking these aspects into account will help you select a domestic solar battery, so the battery is compatible with your solar system’s voltage, meets your charge or discharge rates and aligns with your desired battery lifespan and budget.
Things to consider when choosing a solar battery are given below.
A solar battery automatically detects grid outages and switches to supply electricity to essential appliances through a dedicated critical loads panel, in critical backup mode. The system disconnects from the grid for safety while supplying stored energy to designated circuits like refrigerators, lights and communication devices.
Advanced battery management systems maintain 10% to 30% capacity reserved for backup power, providing reliable emergency electricity until the power grid is restored.

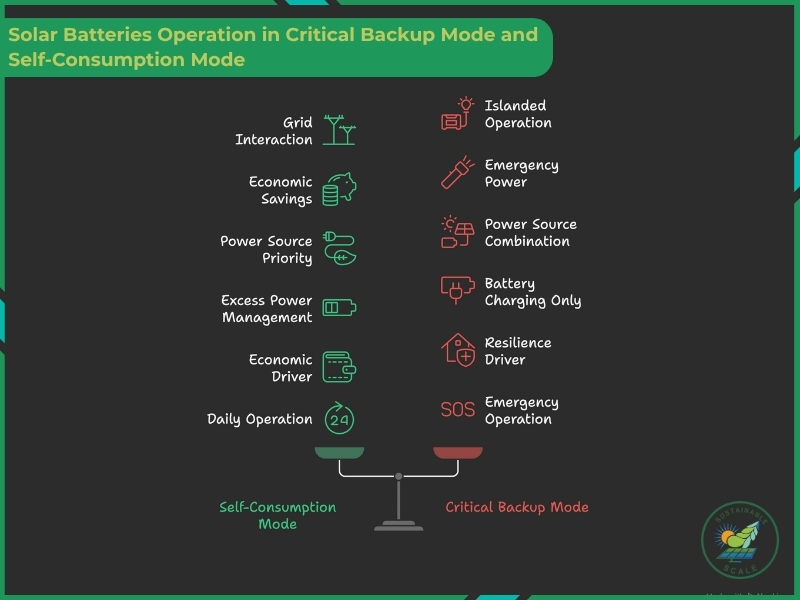

The infographic below shows a balance scale to compare the features of “Self-Consumption Mode,” such as economic savings, against “Critical Backup Mode,” which focuses on emergency power and resilience.
A solar battery stores excess electricity generated by solar panels during the day instead of sending it to the grid, in solar self-consumption mode. The battery discharges and powers the home with stored energy, when solar production drops or demand rises. This maximizes use of your own solar power and reduces reliance on the grid.
Yes, a solar battery can be configured to do both backup and solar self-consumption. It can store excess solar energy for use during outages (backup) and also discharge stored power to your home when solar production is low to reduce grid reliance (self-consumption), though you must manage its charge for both uses.
It will take 8 to 24 hours on average to charge a deep cycle battery, depending on the type of battery and charging method. Lead acid batteries require 8 to 24 hours, while lithium ion batteries charge in as little as 1 to 3 hours. The factors that affect charging time include the battery’s capacity, depth of discharge, charger’s output, type of battery (lead-acid, AGM, gel, or lithium) and the initial state of charge.
When solar batteries are full, any additional solar power cannot be stored. In grid-tied systems, excess energy is sent back to the utility grid, earning credits through net metering. In off-grid setups, surplus energy may be diverted to other loads, wasted or managed by a dump load that converts it to heat or another form. Charge controllers prevent overcharging to protect battery health.
Yes, solar batteries can power a whole house if the solar system is properly sized. You need multiple high-capacity lithium-ion batteries, totaling around 30 to 40 kWh of storage, to back up all household loads, including heating and cooling, during outages. The number of batteries and solar panels required depends on your home’s energy usage, appliances and local weather conditions.
8 to 12 batteries are needed to power a house for comprehensive backup power during outages or 2 to 3 batteries to avoid peak utility costs. A household consuming 30 kWh daily requires 3 batteries of 10 kWh capacity each to meet energy needs and goals and power essential systems. The factors that affect battery quantity include daily energy consumption, battery capacity and type, backup duration requirements, home size, system configuration (grid-tied vs off-grid) and specific energy goals.
The best battery for a home solar system is the lithium-ion battery. Lithium-ion solar batteries are preferred because they hold more energy, offer higher energy density, have longer lifespan of 10 to 15 years, have high efficiencies of up to 95%, offer faster charging and require minimal maintenance compared to other types like lead-acid batteries. These features allow them to discharge most of their stored energy and make them the most reliable and cost effective choice for maximizing solar energy use.
A solar battery lasts between 5 and 15 years on average, with lithium-ion batteries having the longest lifespan of 10 to 15 years. Battery life is affected by several factors, including the battery type, depth of discharge, number of charge and discharge cycles, environmental conditions (such as temperature), maintenance practices and usage patterns. Proper care and choosing the right battery type help maximize its longevity.
The average cost of a solar battery for a fully installed system is between $10,000 to $19,000 and it depends on battery capacity, brand and installation complexity. The solar battery price includes the battery unit installation labor, the inverter and monitoring equipment. The actual battery itself costs between $6,000 and $12,000, while installation and additional components add to the total.
Factors that determine the cost of a solar battery include battery capacity (kWh), battery type like lithium ion or lead acid, brand reputation, installation complexity and system integration needs.
Yes, it is worth getting batteries for solar as they now pay for themselves in under 7 years, with government incentives which reduce costs up to 30%. They offer energy independence, backup power during outages and potential savings to reduce electricity costs by 40% to 70%.
A solar battery is specifically designed to store energy generated from solar panels, optimized for frequent deep charge and discharge cycles, high efficiency and long life. In contrast, a normal battery is used for general applications, stores energy chemically and is not built for repeated deep cycling.
Solar batteries have higher capacity, advanced management systems and are more eco-friendly, while normal batteries are cheaper, easier to replace but less durable in demanding energy storage roles.
The main difference between AC-coupled and DC-coupled solar battery systems is how electricity flows and is converted. In AC-coupled systems, solar power is converted from DC to AC, then back to DC for battery storage, and again to AC for use, resulting in multiple conversions and lower efficiency. DC-coupled systems send DC power directly from panels to batteries and require only one conversion to AC for home use which makes them more efficient but less flexible for retrofits.
Yes, solar panels work without batteries and most home solar systems are grid-tied, meaning they use solar energy during the day and draw power from the utility grid at night or during cloudy weather. Excess solar electricity is sent to the grid and earn credits through net metering. This setup lowers costs and simplifies maintenance, but does not provide backup power during outages since there is no stored energy.
Yes, a hybrid solar inverter can work without a battery and in this setup, the inverter draws power directly from solar panels and the grid, supplying electricity to your home during daylight. However, without a battery, excess solar energy cannot be stored for later use, and the system cannot provide backup power during outages. This battery-less configuration is cost-effective and simpler to maintain but relies on grid power when solar production is insufficient.
Yes, a solar battery is better than a generator for most homeowners looking for backup power. Solar batteries provide clean, silent, and low-maintenance energy that lowers long-term costs and qualifies for tax incentives, although they come with higher upfront costs.
Generators are cheaper initially and offer higher power output for emergencies but require ongoing fuel, create noise and emit pollution. Solar batteries are ideal for sustainability and energy independence, while generators suit short-term, high-power needs.
